In stock

1970L 3 Door Upright Display Freezer (TGC2KB)

$5,500.00 inc GST

Brand Logo
$9.97 /day

Upright Display Freezer | 1970L | 3 Hinged Doors | Triple Glazed Glass | Auto Defrost
Display More. Sell More. Save More.

Key Features

  • 1970L commercial upright display freezer
  • Top mount compressor with auto defrost
  • 12 adjustable shelves
  • 3 triple glazed anti-fog glass doors
  • Bright internal LED lighting
  • Carel digital control (-20°C to -17°C)
  • Eco-friendly R290 refrigeration

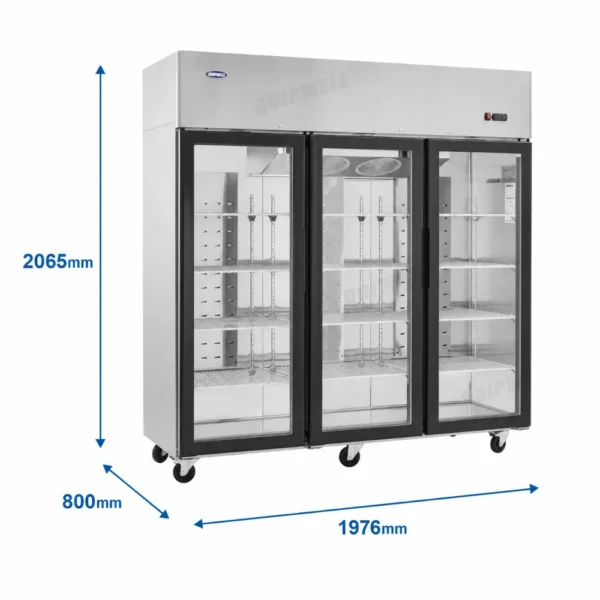

  • 1976mm (W) x 800mm (D) x 2065mm (H)

Calculate Delivery Cost

Description

The Wellquip 1970L 3 Door Upright Display Freezer (TGC2KB) is built for high-capacity frozen storage and clear product display in busy commercial environments.

Designed for supermarkets, butcheries, seafood markets, retail stores, and hospitality venues, it keeps frozen products organised, visible, and ready to sell.

With a huge 1970L capacity and 12 adjustable shelves, this 3 door commercial upright display freezer gives you flexible space for ice cream, seafood, meat, frozen meals, and packaged products.

The triple-glazed anti-fog glass doors help improve insulation while keeping items highly visible. Bright internal LED lighting helps frozen products stand out, while the black door frame gives the freezer a sleek and professional design.

An eco-friendly refrigeration system with 2 evaporator fans and auto defrost helps maintain even cooling in ambient temperatures up to 43°C. The Carel digital temperature controller keeps the cabinet between -20°C and -17°C, while the top-mounted Embraco compressor keeps refrigeration components away from the floor, making it well suited to high clearance ceilings.

Self-closing hinge doors with magnetic door seals limit temperature loss, while the 105° stay-open hinges simplify stock control. Automatic door sensors reduce cold air loss by pausing the fan cooling system when the doors are open.

Built from high-grade stainless steel, the TGC2KB is made for long-lasting durability in commercial environments. 5 castor wheels with front locks make it easy to move and position, while rounded internal corners and edges simplify cleaning and maintenance. Safeguard your inventory after hours with integrated door locks.

Choose the Wellquip 1970L 3 Door Upright Display Freezer if you need a durable, energy-efficient commercial display freezer for high-volume frozen merchandising.

size chest(in.) waist(in.) hips(in.)
XS 34-36 27-29 34.5-36.5
S 36-38 29-31 36.5-38.5
M 38-40 31-33 38.5-40.5
L 40-42 33-36 40.5-43.5
XL 42-45 36-40 43.5-47.5
XXL 45-48 40-44 47.5-51.5

Additional information

Weight 340 kg
Dimensions 83 × 203 × 213 cm

Features

  • Design: Top-mounted heavy-duty Embraco compressor keeps refrigeration components away from floors and is ideal for high clearance ceilings. Maximum vertical display capacity for both merchandising and cold storage.
  • Storage: 1970L storage capacity with 12 adjustable shelves for flexible storage and display.
  • Display: Energy-efficient interior LED vertical lighting. 3 triple glazed anti-fog glass displays for insulation and reduced condensation.
  • Cooling System: Fan-forced dynamic refrigeration with 2 powerful evaporator fans and auto defrost to maintain consistent cabinet temperatures between -20℃ to -17℃.
  • Climate Rating: Climate class 4 (ST) rated for the Australian climate to operate in ambient temperatures of up to 43℃ and 55% RH humidity with a low noise design (<65 decibels). L1-rated -18°C to -15°C temperature class for frozen perishables.
  • Efficiency: Eco-friendly R290 refrigerant and high density cyclopentane insulation. Magnetic door seals and automatic door sensors limit temperature loss by pausing the fan cooling system when the doors are open.
  • Controls: Carel digital temperature controller with LED display for precise regulation.
  • Construction: Durable stainless steel build throughout. Easy-to-clean cabinet with rounded edges and corners. 3 self-closing hinge doors in a striking black frame featuring 105° stay-open hinges for better stocktaking.
  • Stability: 5 castor wheels for mobility with front locks for easy mobility and positioning.
  • Security: Safeguard your inventory after hours with integrated door locks.

Specifications

Technical
Temperature Range -20°C to -17°C
Air Circulation Fan Forced

2 powerful evaporator fans

Auto defrost

Refrigerant R290 (160g)
Energy Consumption 18.0kWh/24h
Climate Class 4 (ST)

L1-rated -18°C to -15°C temperature class

Max. Ambient Temperature +43°C
Humidity Testing Standard 55% RH
Power Supply Single phase 10A power plug at rear-top (2.6m length)
Voltage 220-240V
Frequency 50Hz
Rated Current 7.2A
Power 1450W



Build
Volume 1970L
Packaged Weight 340kg
Unit Weight 304kg
Door Design 3 triple glazed anti-fog glass hinged doors

Black door frame

Self-closing and stay-open

Automatic door sensors

Lock and key set for each door

Shelving System 12 Adjustable Shelves (5 tiers including base)

Left & Right Shelf Dimension: 600mm (W) x 622mm (D)

Centre Shelf Dimension: 650mm (W) x 622mm (D)

Exterior Construction Stainless steel
Interior Construction Stainless steel
Air Intake Position Top
Ventilation Position Top

NB: Please ensure regular cleaning of the air dust filter

Clearance Required 200mm Top



Dimensions
External 1976mm (W) x 800mm (D) x 2065mm (H)
Internal 1876mm (W) x 640mm (D) x 1510mm (H)
Packaged 2026mm (W) x 830mm (D) x 2130mm (H)



Product Warranty

Brand new equipment from Wellkart includes a standard one year (parts & labour) warranty period.

Customers also have the option to purchase an additional year extended warranty (i.e. total two year parts and labour coverage) upon enquiry.

We pride ourselves on the high standard of servicing and support we can provide our customers over the lifetime of your commercial refrigeration equipment. We do this by:

  • ensuring all equipment models have been quality control tested prior to sale;
  • providing nationwide coverage for warranty claims;
  • maintaining a comprehensive spare parts inventory for all our products;
  • offering quick response in-house technical support; and
  • connecting you with our approved panel of third-party refrigeration technicians located across Australia.

For more information, please see our Warranties & Repairs page for more details.

Please Contact Us if you have any questions or need further clarification regarding warranty coverage.
