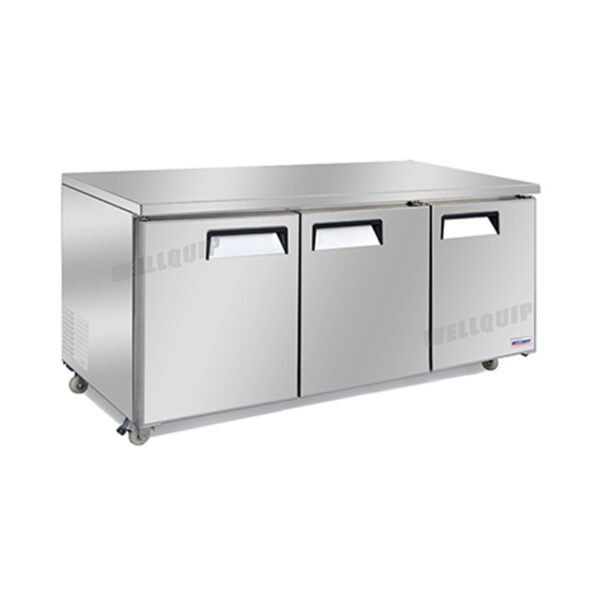

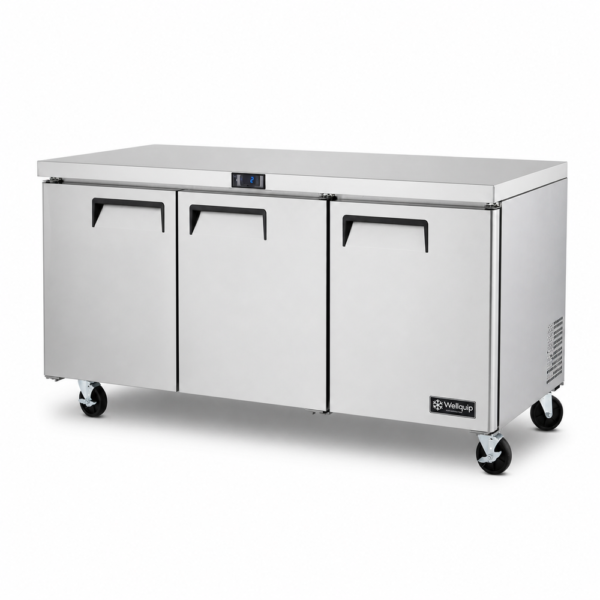

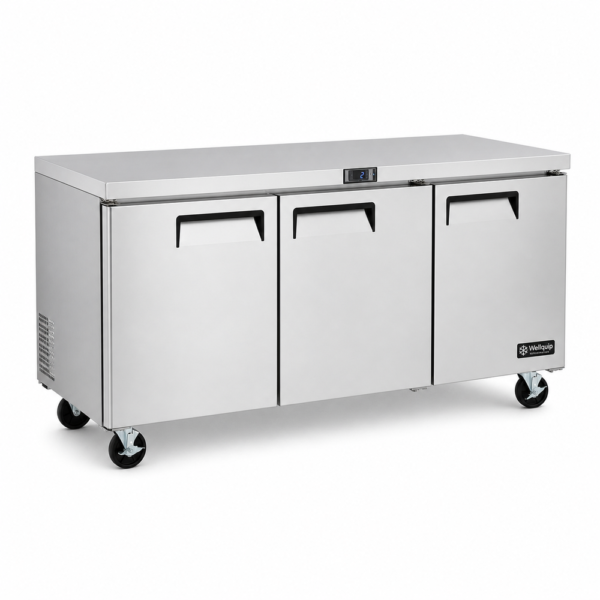

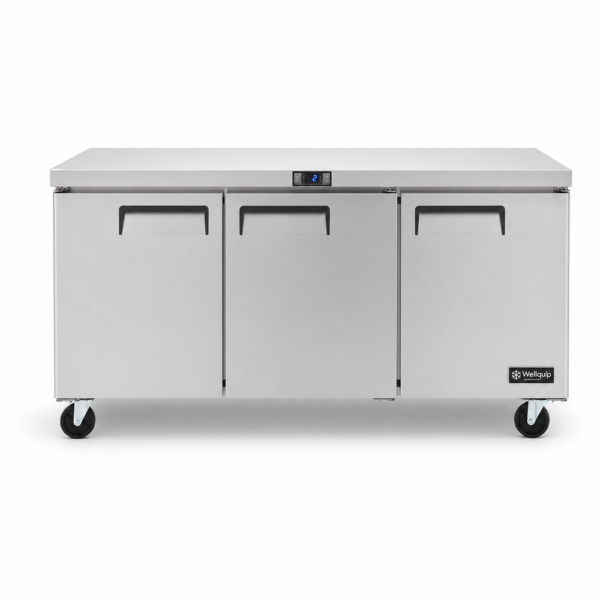

USA54 3 Door Bench Fridge 540L
$$1,954.55 Excl. GST$$2,150.00 Incl. GST inc GST
Bench Fridge | 3 Doors | 540L | Auto Door Sensors | Energy Efficient
Store More. Prep More. Sell More.
Key Features
- 540L commercial bench fridge
- Integrated stainless steel benchtop
- 3 self-closing stainless steel doors
- 3 adjustable shelves
- Auto fan stop door sensors
- Fan-forced cooling (-2°C to +8°C)
- Dixell digital temperature control
- Low energy usage (1.91 kWh/24h)
- 1846mm (W) x 762mm (D) x 950mm (H)
Calculate Delivery Cost
- Description
- Size Guide
- Additional information
- Features
- Specifications
- Product Warranty
- Shipping & Returns
Description
The Wellquip USA54 3 Door Bench Fridge 540L gives busy commercial kitchens reliable chilled storage and a durable stainless steel worktop in one practical unit.
Designed for restaurants, cafés, pubs, bakeries, juice bars, and fast casual venues, this commercial bench fridge keeps fresh ingredients, sauces, drinks, and prep items accessible across your work line.
With a 540L capacity and 3 adjustable shelves, it combines an integrated chiller cabinet underneath with an ergonomic counter height, which is ideal for commercial kitchens to help reduce strain on your neck and back during prep.

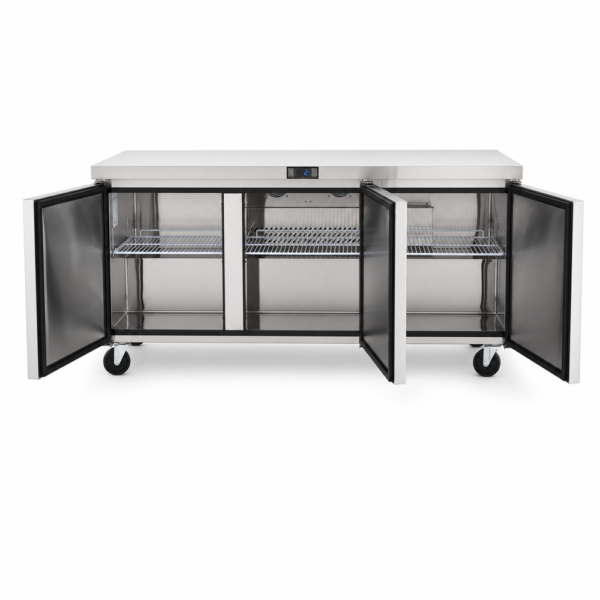

The 3 solid stainless steel swing doors feature magnetic door seals and automatic fan cut-off sensors to help reduce cold air loss when the doors are open. In addition, the self-closing doors also include 105° stay-open hinges for easier loading and restocking.
A rear-mounted compressor helps maximise internal storage space. In addition, the 360° fan-forced cooling system with 2 evaporator fans and high density insulation supports fast and even air circulation in ambient temperatures up to 43°C.
The Dixell digital controller maintains chilled temperatures between -2°C and +8°C, while eco-friendly R600a refrigeration helps keep energy use low at 1.91 kWh/24h.
Built from high-grade stainless steel, this 3 door bench fridge also includes 4 castor wheels with front locks, rounded internal corners for easier cleaning, and rear air filter access for maintenance.
Choose the Wellquip USA54 3 Door Bench Fridge 540L if you need a durable, energy-efficient commercial bench fridge for prep areas, service stations, and back-of-house storage.
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Weight | 180 kg |
|---|---|
| Dimensions | 85.1 × 191.6 × 98 cm |
Features
- Designed for Real Kitchens: Rear-mounted compressor and horizontal cabinet design provide accessible chilled storage beneath countertops, while the integrated stainless steel worktop creates an ergonomic 950mm-high preparation surface.
- Generous Storage: 540L capacity and 3 adjustable shelves provide flexible organisation for fresh ingredients, liquids, sauces, dairy, and prepared food.
- Even Cooling: Fan-forced dynamic refrigeration and two powerful evaporator fans deliver 360-degree airflow for consistent cabinet temperatures between -2°C and +8°C.
- Reliable Performance: Climate class 5 construction supports operation in ambient temperatures up to 43°C and 55% relative humidity, making it suitable for demanding commercial kitchens.
- Food-Safe Refrigeration: M1 temperature classification supports the chilled storage of perishable food within the rated -1°C to +5°C range.
- Lower Running Costs: Eco-friendly R600a refrigerant and 60mm high-density insulation supports ultra-low energy use of only 1.91 kWh per 24 hours.
- Reduced Temperature Loss: Magnetic door seals improve thermal insulation, while auto door sensors stop the evaporator fans to help retain cold air when the doors are open.
- Precise Control: A Dixell digital controller with LED display provides clear, accurate temperature monitoring and adjustment.
- Commercial Durability: Stainless steel construction throughout withstands frequent kitchen use, while rounded internal edges and corners simplify cleaning.
- Efficient Restocking: 3 self-closing doors feature 105-degree stay-open hinges for easier loading, stocktaking, and ingredient access.
- Easy Positioning: Four castor wheels make the fridge easy to move, while front locks keep it securely positioned during operation.
- Simpler Maintenance: The rear-mounted condenser air filter is readily accessible for routine cleaning and maintenance.
Specifications
| Technical | |
| Temperature Range | -2°C to +8°C |
| Air Circulation | Fan Forced 2× Evaporator fans |
| Refrigerant | R600a |
| Energy Consumption | 1.91 kWh/24h |
| Climate Class | 5 (ST) M1-rated -1°C to +5°C temperature class |
| Max. Ambient Temperature | +43°C |
| Humidity Testing Standard | 55% RH |
| Power Supply | Single phase 10A power plug at right-rear (2.6m length) |
| Voltage | 220-240V |
| Frequency | 50Hz |
| Rated Current | 2.0A |
| Power | 370W |
| Build | |
| Volume | 540L |
| Packaged Weight | 143kg |
| Unit Weight | 115kg |
| Door Design | 3 stainless steel hinged doors Self-closing and stay-open Automatic door sensors Recessed integrated handles |
| Shelving System | 3 Adjustable Shelves (2 tiers including base) Left & Right Shelf Dimension: 547mm (W) x 448mm (D) Centre Shelf Dimension: 600mm (W) x 448mm (D) |
| Exterior Construction | Stainless steel |
| Interior Construction | Stainless steel |
| Air Intake Position | Rear |
| Ventilation Position | Rear NB: Please ensure regular cleaning of the air dust filter |
| Clearance Required | 100mm Rear |
| Dimensions | |
| External | 1846mm (W) x 762mm (D) x 950mm (H) |
| Internal | 1756mm (W) x 600mm (D) x 677mm (H) |
| Packaged | 1920mm (W) x 831mm (D) x 980mm (H) |
