560L 4 Door Splashback Bench Freezer (WFCB56)
$2,650.00 inc GST
Under Bench Freezer | 4 Doors | 560L | Integrated Splashback | 2230mm (W) × 700mm (D) × 1000mm (H)
Store More. Prep More. Save More.
Key Features
- 560L commercial bench freezer
- Integrated benchtop and prep surface
- 150mm splashback
- 4 self-closing doors with stay-open hinges
- Auto fan door sensors
- 8 adjustable shelves
- Fan-forced dynamic cooling with auto defrost
- Carel digital temperature control (-22°C to -18°C)
- Eco-friendly refrigeration (6.13kWh/24h)

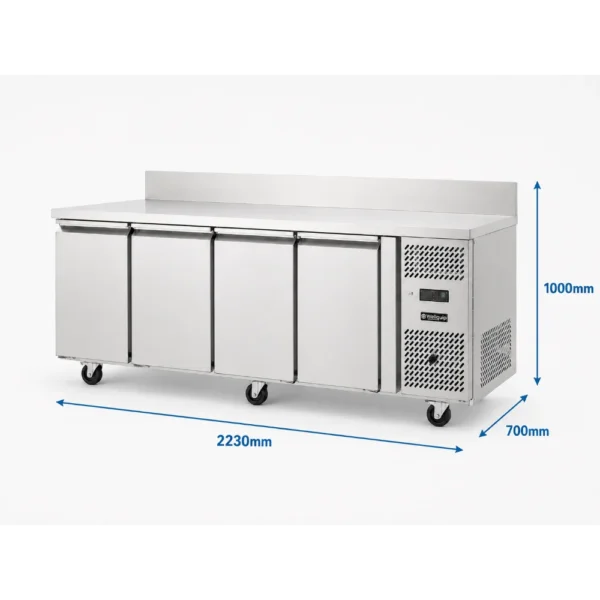

- 2230mm (W) × 700mm (D) × 1000mm (H)
Calculate Delivery Cost
- Description
- Size Guide
- Additional information
- Features
- Specifications
- Product Warranty
- Shipping & Returns
Description

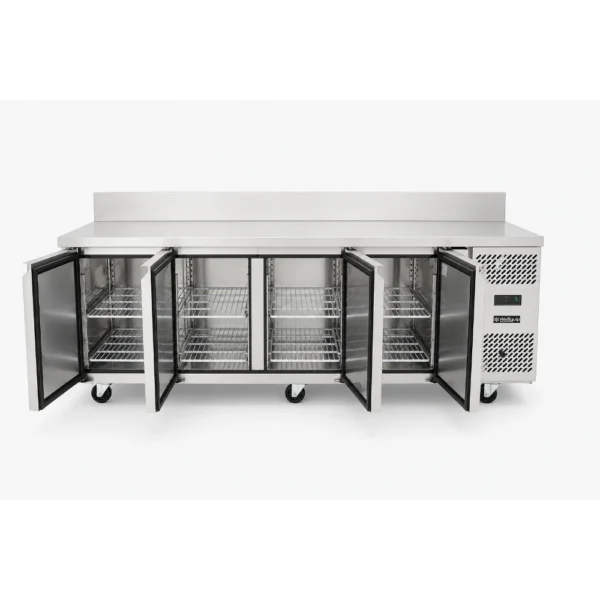

The Wellquip 560L 4 Door Splashback Bench Freezer (WFCB56) combines under-counter cold storage with an integrated stainless steel worktop and 150mm splashback to streamline food prep in busy kitchens.
Designed for restaurants, cafés, pubs, bakeries, juice bars, and fast casual venues, this 4 door commercial bench freezer with splashback keeps frozen ingredients close to the prep area. With a 560L capacity and 8 adjustable shelves, it provides flexible storage for seafood, meat, frozen produce, packaged food, and back-up stock.
The 4 solid stainless steel swing doors feature magnetic door seals and automatic fan cut-off sensors to help reduce cold air loss when the doors are open. In addition, the self-closing doors also include 105° stay-open hinges for easier loading and restocking.
A heavy-duty right side-mounted compressor helps maximise internal storage depth. Meanwhile, the 360° fan-forced cooling system with auto defrost supports fast and even air circulation in ambient temperatures up to 43°C. The Carel digital controller maintains frozen temperatures between -22°C and -18°C, while eco-friendly R290 refrigeration helps keep energy use low at 6.13kWh/24h.
Built with high-grade stainless steel and high density insulation, this commercial counter freezer is made for demanding back-of-house use. It also includes 5 castor wheels with front locks, rounded internal corners, and a lockable front panel for easy access and filter cleaning.
Choose the Wellquip 560L 4 Door Splashback Bench Freezer (WFCB56) if you need high-capacity frozen storage with a practical prep surface along your workline.
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Weight | 240 kg |
|---|---|
| Dimensions | 75 × 229 × 104 cm |
Features
- Design: Right side-mounted heavy-duty compressor for deep under-counter cold storage. Space-saving horizontal frozen storage which fits easily under countertops. Sleek and clean design with integrated stainless steel benchtop and 150mm splashback.
- Storage: 560L storage capacity with 8 adjustable shelves for flexible storage and organisation.
- Cooling System: Fan-forced dynamic refrigeration with auto defrost delivers uniform 360° cooling to maintain consistent cabinet temperatures between -22℃ to -18℃.
- Climate Rating: Climate class 4 (ST) rated for the Australian climate to operate in ambient temperatures of up to 43℃ and 55% RH humidity with a low noise design (<65 decibels). L1-rated -18°C to -15°C temperature class for frozen perishables.
- Efficiency: Eco-friendly R290 refrigerant and 60mm high density cyclopentane insulation results in ultra-low energy consumption (6.13kWh/24h). Magnetic door seals and automatic door sensors limit temperature loss by pausing the fan cooling system when the doors are open.

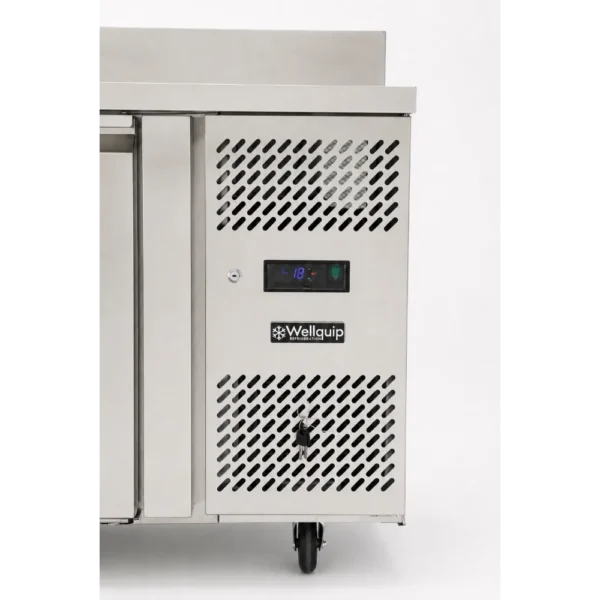

- Controls: Carel digital temperature controller with LED display for precise regulation.
- Construction: Durable high-grade stainless steel build throughout. Easy-to-clean cabinet with rounded edges and corners. 4 self-closing hinge doors also include 105° stay-open hinges for efficient access and restocking.
- Stability: 5 castor wheels for mobility with front locks for easy mobility and positioning.
- Maintenance: Easy upkeep with the condenser air filter located behind the lockable front panel.
Specifications
| Technical | |
| Temperature Range | -22°C to -18°C |
| Air Circulation | Fan Forced |
| Refrigerant | R290 |
| Energy Consumption | 6.13kWh/24h |
| Climate Class | 4 (ST) L1-rated -18°C to -15°C temperature class |
| Max. Ambient Temperature | +43°C |
| Humidity Testing Standard | 55% RH |
| Power Supply | Single phase 10A power plug at left-rear (2.6m length) |
| Voltage | 220-240V |
| Frequency | 50Hz |
| Rated Current | 3.0A |
| Power | 600W |
| Build | |
| Volume | 560L |
| Packaged Weight | 201kg |
| Unit Weight | 160kg |
Door Design | 4 stainless steel hinged doors Self-closing and stay-open Automatic door sensors Recessed integrated handles |
| Shelving System | 8 Adjustable Shelves (3 tiers including base) Shelf Dimension: 330mm (W) x 555mm (D) |
| Exterior Construction | Premium grade SUS201 stainless steel |
| Interior Construction | Premium grade SUS201 stainless steel |
| Air Intake Position | Front |
| Ventilation Position | Right & Rear NB: Please ensure regular cleaning of the air dust filter |
| Clearance Required | 100mm Right & 50mm Rear |
| Dimensions | |
| External | 2230mm (W) x 700mm (D) x 850mm (H) to countertop 2230mm (W) x 700mm (D) x 1000mm (H) to splashback |
| Internal | 1692mm (W) x 570mm (D) x 580mm (H) |
| Packaged | 2285mm (W) x 755mm (D) x 1032mm (H) |
