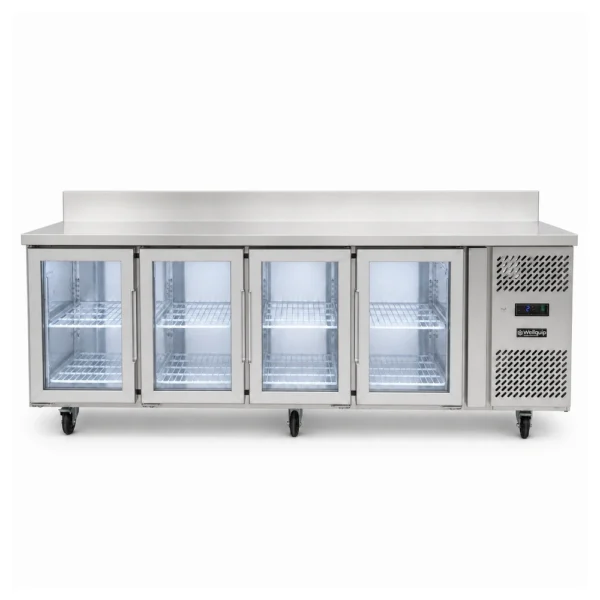

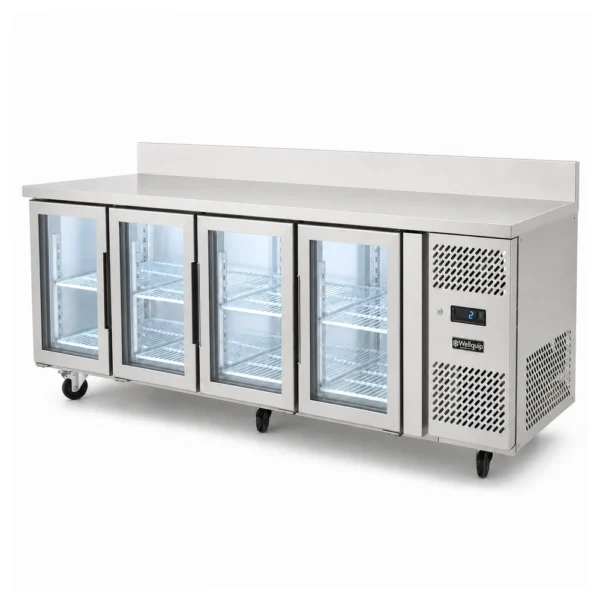

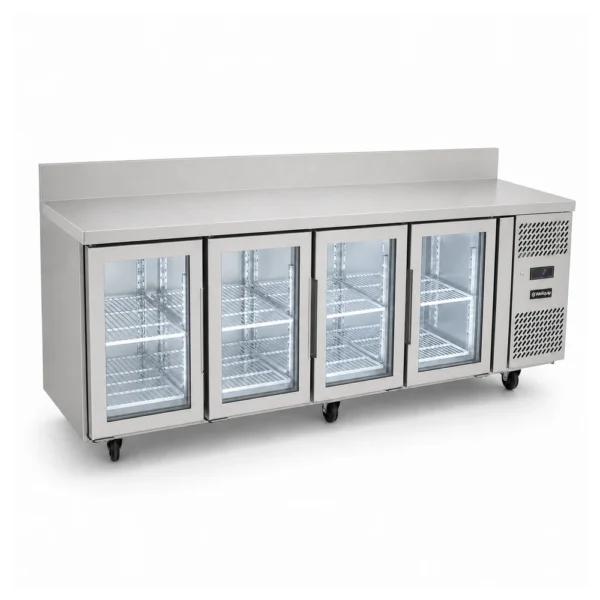

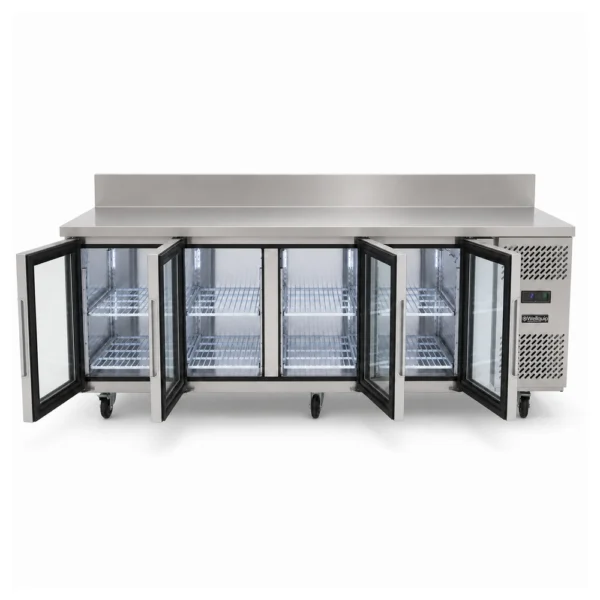

4 Door Glass Splashback Bench Fridge 560L (WGAB56)
$2,700.00 inc GST
Splashback Bench Fridge | 4 Doors | 560L | Double Glazed Glass | LED Lighting
Store More. Prep More. Save More.
Key Features
- 560L 4 door bench fridge
- 4 Double-glazed glass doors with LED
- Stainless steel benchtop and splashback
- 8 adjustable shelves
- Fan-forced cooling (-2°C to +8°C)
- Carel digital temperature control
- Low energy use (3.15kWh/24h)
- 2230mm (W) x 700mm (D) x 1000mm (H)
Calculate Delivery Cost
- Description
- Size Guide
- Additional information
- Features
- Specifications
- Product Warranty
- Shipping & Returns
Description
The Wellquip 4 Door Glass Splashback Bench Fridge 560L (WGAB56) gives busy commercial kitchens high-capacity chilled storage, clear stock visibility, and a durable stainless steel worktop with splashback in one practical unit.
Designed for restaurants, cafés, pubs, bakeries, juice bars, and fast casual venues, this 4 door commercial bench display fridge with splashback keeps ingredients, sauces, milk cartons, and drinks accessible in both prep and service areas.
With a 560L capacity and 8 adjustable shelves, it provides flexible storage for high-volume prep stations and back-of-house kitchens. The 4 double glazed glass doors with interior LED lighting make stock easy to see, while magnetic door seals and high density insulation help reduce cold air loss.
A right side-mounted compressor helps maximise internal storage depth. In addition, the 360° fan-forced cooling system supports fast and even air circulation in ambient temperatures up to 43°C.
The Carel digital controller maintains chilled temperatures between -2°C and +8°C, while eco-friendly R290 refrigeration helps keep energy use low at 3.15kWh/24h.
Built from high-grade stainless steel, this 4 door splashback bench fridge is made for demanding commercial use. It also includes self-closing glass doors, 105° stay-open hinges, automatic fan cut-off sensors, castor wheels with front locks, rounded internal corners, and a lockable front panel for easy filter access.
Choose the Wellquip 4 Door Glass Splashback Bench Fridge 560L (WGAB56) if you need a high-capacity, energy-efficient under bench display fridge for prep areas, service stations, and commercial kitchens.
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Weight | 255 kg |
|---|---|
| Dimensions | 74 × 227 × 105 cm |
Features
- Design: Right side-mounted heavy-duty compressor for deep under-counter cold storage. Space-saving horizontal chilled storage with integrated stainless steel benchtop and splashback. Double glazed glass doors and LED lighting.
- Storage: 560L storage capacity with 8× adjustable shelves for flexible storage and organisation.
- Cooling System: Fan-forced dynamic refrigeration delivers uniform 360° cooling to maintain consistent cabinet temperatures between -2℃ to +8℃.
- Climate Rating: Climate class 5 (ST) rated for the Australian climate to operate in ambient temperatures of up to 43℃ and 55% RH humidity with a low noise design (<65 decibels). M1-rated -1°C to +5°C temperature class for keeping perishables fresh.
- Efficiency: Eco-friendly R290 refrigerant and 60mm cyclopentane insulation results in ultra-low energy consumption (3.15kWh/24h). Magnetic door seals and automatic door sensors limit temperature loss by pausing the fan cooling system when the doors are open.
- Controls: Carel digital temperature controller with LED display for precise regulation.
- Construction: Durable high-grade stainless steel build throughout. Easy-to-clean cabinet with rounded edges and corners. 4× self-closing hinge doors also include 105° stay-open hinges for efficient access and restocking.
- Stability: 4× castor wheels for mobility with front locks for easy mobility and positioning.
- Maintenance: Easy upkeep with the condenser air filter located behind the lockable front panel
Specifications
| Technical | |
| Temperature Range | -2°C to +8°C |
| Air Circulation | Fan Forced |
| Refrigerant | R290 (130g) |
| Energy Consumption | 3.15kWH/24h |
| Climate Class | 5 (ST) M1-rated -1°C to +5°C temperature class |
| Max. Ambient Temperature | +43°C |
| Humidity Testing Standard | 55% RH |
| Power Supply | Single phase 10A power plug at left-rear (2.6m length) |
| Voltage | 220-240V |
| Frequency | 50Hz |
| Rated Current | 1.9A |
| Power | 400W |
| Build | |
| Volume | 560L |
| Packaged Weight | 188kg |
| Unit Weight | 151kg |
Door Design | 4 double-glazed glass hinged doors Self-closing and stay-open Automatic door sensors Recessed integrated handles |
| Shelving System | 8 Adjustable Shelves (3 tiers including base) Shelf Dimension: 330mm (W) x 555mm (D) |
| Exterior Construction | Premium grade SUS201 stainless steel |
| Interior Construction | Premium grade SUS201 stainless steel |
| Air Intake Position | Front |
| Ventilation Position | Right & Rear NB: Please ensure regular cleaning of the air dust filter |
| Clearance Required | 100mm Right & 50mm Rear |
| Dimensions | |
| External | 2230mm (W) x 700mm (D) x 1000mm (H) |
| Internal | 1692mm (W) x 570mm (D) x 580mm (H) |
| Packaged | 2285mm (W) x 755mm (D) x 1032mm (H) |
